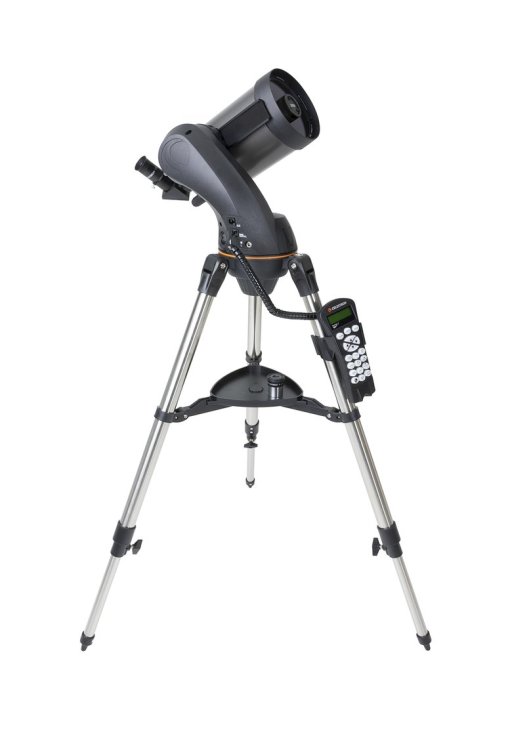

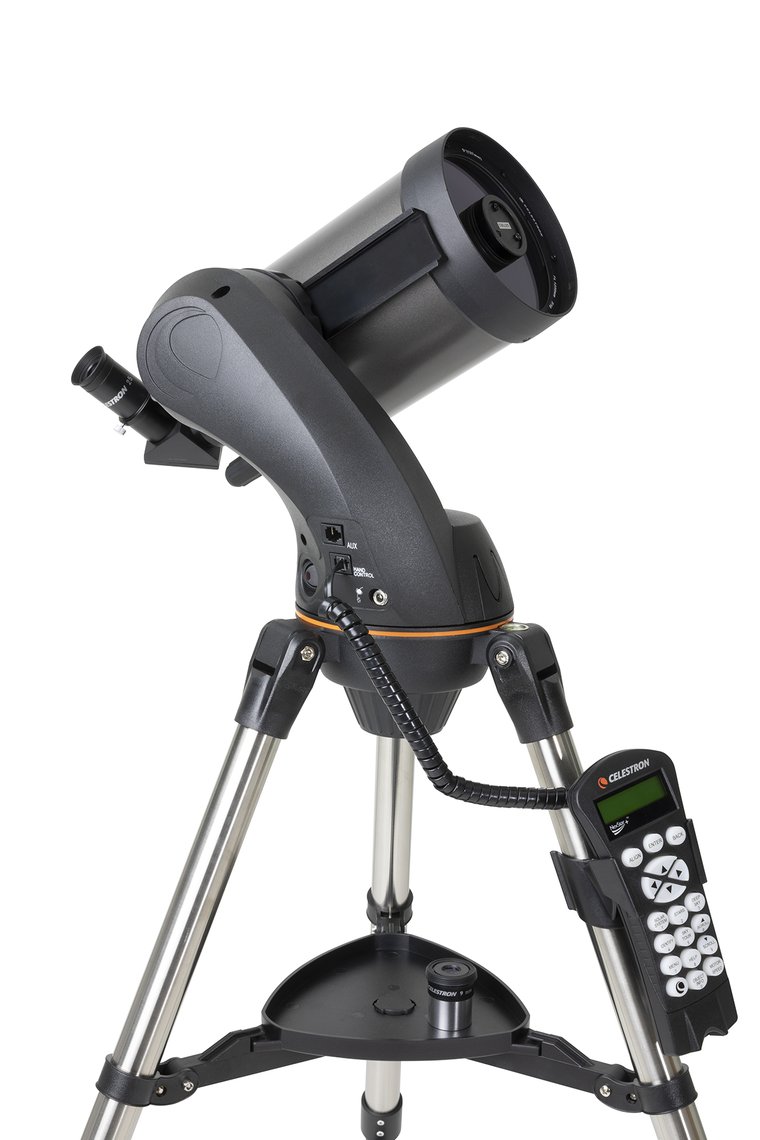

Celestron’s innovative NexStar Star Location Telescope (SLT) has been a customer favorite for years thanks to its unique combination of high quality optics, user-friendly computerized interface and a sturdy single fork arm mount.
This telescope comes with a preassembled, adjustable stainless steel tripod, quick release fork arm, NexStar+ computerized hand control, 5” Schmidt-Cassegrain optical tube, and lots of bonus accessories.
The entire telescope kit weighs in at just 7.5 Kg. The simple, no-tool assembly and fast SkyAlign alignment procedure will have you ready to observe in minutes. This makes NexStar 5SLT your perfect companion for impromptu observing sessions and all-night stargazing marathons alike.
Your NexStar 5SLT will reveal details of the lunar surface, Venus and its phases, the polar caps on Mars, Jupiter and its four moons, and Saturn with its rings plainly visible.
Schmidt-Cassegrain Optical Tube
The NexStar 5SLT comes with a 5” Schmidt-Cassegrain optical tube, a great multi-use telescope with 1250 mm of focal length (f/10). The Celestron C5 is equipped with patented StarBright XLT coatings, which visibly increase contrast and bring out subtle detail on the Moon, planets, and faint nebulae. These coatings also increase light transmission for brighter deep space images.
The Celestron C5 strikes an excellent balance between portability, ease of use, light gathering ability and price.
The Mount & Technologies
Computerized Alt-Azimuth telescope – The NexStar SLT telescope features a single fork arm alt-azimuth mount, which allows the telescope to track the desired objects as they appear to move across the night sky. The mount sits on a pre-assembled, adjustable steel tripod.
NexStar+ Hand Control – This computerized hand control enables you to automatically slew to any of 40,000+ celestial objects with the push of a button. The NexStar+ database includes more than 600 galaxies, 300 clusters and dozens of beautiful binary stars. Not sure what to observe? Choose the Sky Tour feature and the NexStar+ hand control will automatically generate a list of all the best celestial objects currently visible based on your exact time and location.
SkyAlign Technology – Our proprietary SkyAlign alignment procedure makes setting up and using a computerized telescope faster and easier than ever before. Point the telescope at three bright objects in the sky, and the telescope can triangulate its position and locate any other object in the sky automatically. You don’t need to know the names of the stars—you can even pick the Moon or bright planets! For more information about our SkyAlign technology, visit here.
Power – Go anywhere! Feel free to enjoy your NexStar SLT in remote dark sky locations—it’s powered by 8 AA batteries (not included) or a external 12V power source adaptor (not included). The internal battery compartment provides power to the high precision servo motors for rigid low-vibration performance while eliminating cord wrap issues associated with external battery packs.
Accessories Included
Your telescope includes a StarPointer™ red dot finderscope, a star diagonal, and two eyepieces (20mm and 9mm, or similar). The two eyepieces offer different magnifications for low or high powered observing. The star diagonal provides a right-side-up view and a more comfortable viewing angle when looking up at the sky. The StarPointer™ finderscope will help you quickly center an object in your eyepiece for easier observing.
NexStar 5SLT is ready to grow with you as you become a more experienced amateur astronomer. It’s compatible with all Celestron’s latest accessories (NOT INCLUDED) like StarSense AutoAlign, SkyPortal WiFi module, and PowerTank Lithium Pro
| OPTICAL TUBE INFO: | |
|---|---|
| Optical Design: | Schmidt-Cassegrain |
| Aperture: | 125mm (5″) |
| Focal Length: | 1250mm |
| Focal Ratio: | f/10 |
| Focal Length of Eyepiece 1: | 20mm |
| Magnification of Eyepiece 1: | 63x |
| Focal Length of Eyepiece 2: | 9mm |
| Magnification of Eyepiece 2: | 139x |
| Finderscope: | StarPointer™ red dot finderscope |
| Star Diagonal: | 1.25″ Star Diagonal |
| Optical Tube: | Aluminum |
| Highest Useful Magnification: | 295x |
| Lowest Useful Magnification: | 18x |
| Limiting Stellar Magnitude: | 13 |
| Resolution (Rayleigh): | 1.11 arc seconds |
| Resolution (Dawes): | 0.93 arc seconds |
| Light Gathering Power (Compared to human eye): | 329x |
| Secondary Mirror Obstruction: | 51mm (2″) |
| Secondary Mirror Obstruction by Diameter: | 16.6% |
| Secondary Mirror Obstruction by Area: | 40% |
| Optical Coatings: | StarBright XLT |
| Optical Tube Length: | 330mm (13″) |
| Optical Tube External Diameter (not aperture) | 152mm (6″) |
| Optical Tube Weight: | 6 lbs (2.7 kg) |
| Dovetail: | CG-5 Dovetail bar |
| MOUNT INFO: | |
|---|---|
| Mount Type: | Computerized Altitude-Azimuth Single Fork Arm |
| Instrument load capacity: | 8 lbs (3.6 kg) |
| Height adjustment range (includes mount and tripod): | 762mm – 1270mm (30″ – 50″) |
| Tripod Leg Diameter: | 31.75mm (1.25″) Stainless steel |
| Mount Head Weight: | 5 lbs (2.3 kg) |
| Accessory Tray: | Yes |
| Tripod Weight: | 5 lbs (2.3 kg) |
| Slew Speeds: | 9 slew speeds – max speed 3°/second |
| Tracking Rates: | Sidereal, Solar and Lunar |
| Tracking Modes: | Alt-Az, EQ North and EQ South |
| GPS: | N/A |
| Dovetail Compatibility: | CG-5 saddle plate |
| Number of Auxiliary Ports: | 1x AUX Port | 1x hand control Port (hand control can use either port) |
| Autoguide Port: | N/A |
| USB Port: | Yes, input on hand control |
| Power Requirements: | 12 VDC – 8xAA Batteries (not included) |
| Motor Drive: | DC Servo Motor |
| Alignment Procedures: | SkyAlign, Auto 2-Star Align, 1-Star Align, 2-Star Align, Solar System Align |
| Periodic Error Correction: | N/A |
| Computerized Hand Control: | 1 Hand Control Port and 1 AUX Port |
| NexStar+ Database: | Over 40,000 including 220 of the best deep sky and solar system objects |
| Software: | Celestron Starry Night Special Edition Software | SkyPortal App |
| Total Kit Weight: | 16 lbs (7.3 kg) |
| Included Items: | Optical Tube | Single Fork Arm Mount and tripod | Accessory Tray| NexStar+ Hand Control | 20mm and 9mm eyepiece | StarPointer™ red dot finderscope | Star Diagonal |
